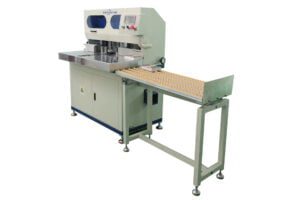

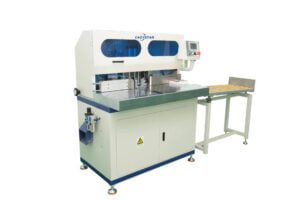

Book corner rounding machine
We are highly thankful to you for your interested in our book corner rounding machine. On the basis of our general terms and conditions of sale, we have pleasure to quote you as followings:
| Specification: | |
| Model | ES460 |
| Working speed | 18cuts/min |
| Max.cutting product size | 460mm |
| Min.cutting product size | 130mm, 100mm(manual mode) |
| Max.cutting height | 80mm |
| Air pressure power/air pressure | 2.5kw/ 6-8bar |
| Ribbon width | 220V/1KW |
| Overall dimension | (1100+1500receiving belt)×730×1430mm |
| Weight | 300kg |
| Features:
1. Automatic alignment and pushing, auto two-corner rounding, auto feeding to receiving belt. No need manual alignment and pushing, high production efficiency. 2. PLC program control, precise corner rounding 3. Using chrome steel blades, the incision is flat and no residue, durable Operation procedures: 1. Manual feeding 2. Auto front and rear alignment 3. Auto corner rounding on both sides 4. Auto pushing product to receiving ball plate on the right |
|
