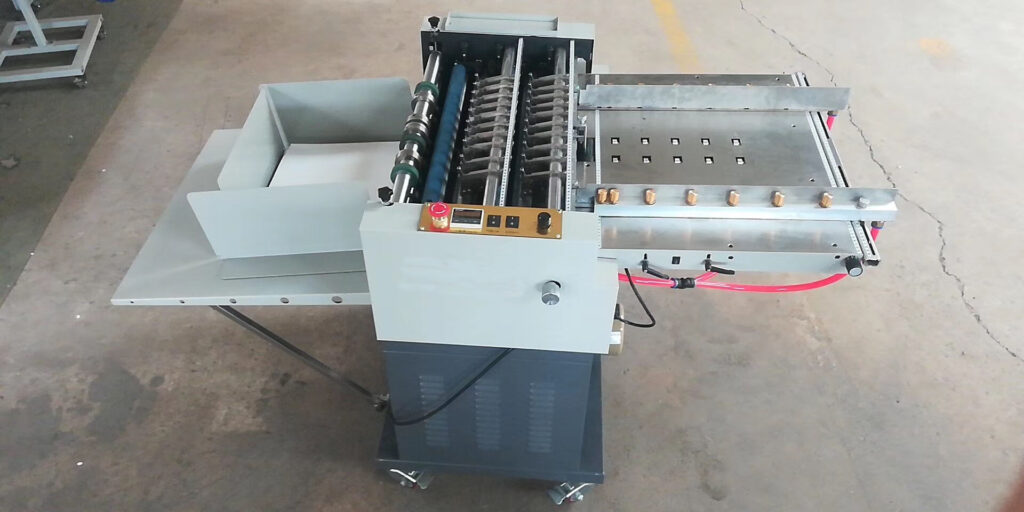

ES-YH353A Automatic Digital Paper Creasing Machine
We are highly thankful to you for your interested in our paper creasing machine. On the basis of our general terms and conditions of sale, we have pleasure to quote you as followings:
| Specification: | |
| Model | ES-YH353A |
| Paper thickness | 60~400g(creasing) 60~300g(dotted line) |
| Numbers of creasing per every paper | 0~32 times |
| Paper length | 150-660mm |
| Paper width | 210-320mm |
| Min.distance of creasing | 1mm |
| Working programme | 30 groups |
| Moveable bottom cabinet | 20KGS |
| Creasing speed(one time on A4 paper) | 4000pcs/hour |
| Creasing accuracy | ±0.2mm |
| Power | 220V/50HZ or 110V/60HZ 200W |
| Machine dimension | 1660*560*490mm |
| Packing size | 76*68*59cm |
| N/W.G.W | 78KGS/85KGS |
| Variable creasing | yes |
| Tally function | positive and negative |
| Paper feeding way | Air suction |
| Min.distance from the first creasing to the top of paper | 5mm |
| Quantity on the platform | 100mm |
